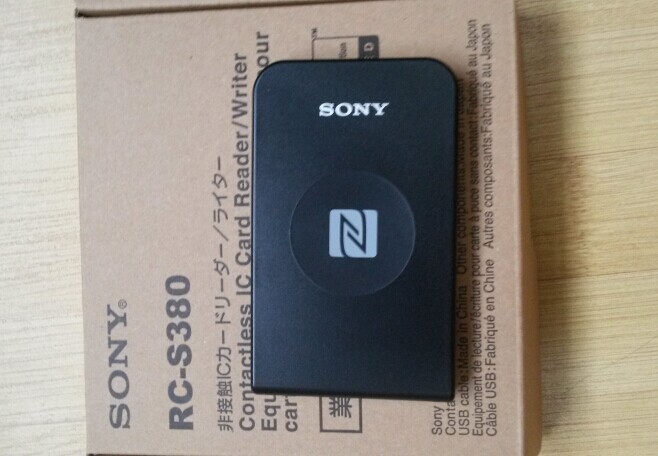

USB NFC Reader
RC-S380
-
NFC
Forum-certified -
Conforms to
PC/SC 2.0 - Windows8
The RC-S380 product is the world's first reader certified by the NFC Forum Certification Program*. It is capable of communicating both with devices that conform to the NFC Forum specifications and with various contactless IC cards, including FeliCa and ISO/IEC 14443 Type A/Type B.
* NFC Forum Certification Program: A program for the purpose of checking products' conformity to the NFC Forum specifications and ensuring compatibility among products. Conformance testing is performed on products submitted to authorized test laboratories with the validated test tools.
Features
NFC Forum-certified products
Available for communication with various devices conforming to the NFC Forum specifications.
Compatible with Windows 8
By connecting RC-S380 with Windows 8 PC, users can pair up and exchange data easily with NFC-enabled smartphones.
Available for various contactless IC cards
Read/Write capability with FeliCa card/FeliCa-compatible devices and ISO/IEC14443 Type A / Type B cards.
Compliant with various countries' / areas' radio law
RC-S380 is compliant with radio law in the following countries / areas.
USA / Canada / EU / Korea / Hong Kong / Thailand / Malaysia / Singapore / Philippines / Indonesia / India / Saudi Arabia / Brazil / China(China model only)
Supports P2P communication with other devices
RC-S380 supports NFC-Data Exchange Protocol (DEP) / NFC Simple NDEF Exchange Protocol (SNEP) / NFC Logical Link Control Protocol (LLCP) communication on both Windows 7 and 8, which makes it possible to communicate with other P2P devices such as Android products.
Conforms to PC/SC 2.0 specification
PC/SC interface for applications is provided to access FeliCa cards and ISO/IEC14443 Type A / Type B cards.
Complies with ISO/IEEE 11073
Supports converting the vital data from healthcare products embedded with the NFC Dynamic Tag (FeliCa Plug) into ISO/IEEE 11073- Continua format data.
Product Specifications
| RC-S380 | |
|---|---|
| Regulation requirements |
?Japan ： No.: AC-12005 ?USA ： FCC ID: AK8RCS380 ?Canada ： IC Certification No.: 409B-RCS380 ?Europe ： CE R&TTE(1999/5/EC) As for the other regulation requirements, please contact us. |
| Communication distance (per card and device)*1 | Approx. 5mm (distance from the external surface of the device)*2 |
| Communication speed (per card and device) | 106kbps, 212kbps, 424kbps |
| Communication method |
Compliant with ISO/IEC 18092 (212kbps / 424kbps Passive communication mode) Compliant with ISO/IEC 14443 (Type A / Type B) |
| API | PC/SC Ver. 2.0, Near Field Proximity API, FeliCa library |
| Compatible cards / devices |
?FeliCa Standard ?FeliCa Lite ?NFC Dynamic Tag (FeliCa Plug) ?Mobile FeliCa IC mobile phone ?Pico Pass ?MIFARE Classic ?MIFARE Ultralight / Ultralight C ?MIFARE DESFire / DESFire EV1 ?MIFARE Plus ?Topaz/JEWEL ?ISO/IEC 14443 Type A / Type B ?ISO/IEC 14443-4 Type A / Type B (T=CL) ?NFC Forum Tag 1, 2, 3, 4A, 4B |
| Carrier frequency (per card/device) | 13.56MHz (±50ppm) |
| Operating temperature /humidity (no condensation) | 5 ~ 35oC / 10 ~ 90% |
| Storage temperature /humidity (no condensation) | -20 ~＋60oC / 10 ~ 80% |
| Mass | Approx. 36g (excluding USB cable) |
| External dimensions (W x H x D) | Approx. 60mm x 110mm x 11mm |
| External interface | USB (full-speed) |
| USB cable length | Approx. 1m |
| Operating voltage | DC 5V (supplied via USB) |
| Consumption current | Max. 200mA during operation |
| Supplied accessories | Instruction manual, Cardholder, dedicated stand, USB cable |
| *1 | Communications distance depends on the peripheral environment. Under ideal conditions, this value is unaffected by electromagnetic waves or metallic substances. |
|---|---|
| *2 | Value when placing the card and device with the respective midpoints coinciding to remain on the reader. |
| Note: | Conforming to the RoHS Directive (a European environmental regulation), a halogen-type flame retardant is not used for the printed circuit board. Also, lead-free solder is used and the design is environmentally-friendly. |
