Product show
AXIS F34 monitors the host
AXIS F34 monitoring system
You can trust the high cost performance complete solution
The AXIS F34 host simultaneously streams HDTV 720p video from four AXIS F1004 sensor units
Anics' Zipstream technology
It is equipped with two 64 GB microSDXC CARDS for security monitoring
Support AXIS Companion for convenient video administration and secure remote monitoring
The AXIS F34 Surveillance system
Carrot and stick
AXIS F34 is a hidden four-channel camera monitoring solution ideal for small shops and offices. The hardware needed to set up the system is provided with the sales product, while the video management software is available for free download on personal computers and mobile devices. All components, from cameras to storage and video management, are fully integrated for optimal installation and use.
The separate camera concept has many benefits
We have separated the IP camera's host from the lens and the image sensor for several reasons. Thumb-sized lenses and mounting accessories are easily concealed by mounting on the surface or embedded in the ceiling. The product contains two different types of installation accessories, so you can choose the best on-site installation. You can also place small lightweight hosts as far as 15 meters (49 feet) away from each sensor unit. All four sensor units are powered by the mainframe, so you do not need to power them separately.
The working principle of
Four eyes of the system
AXIS F1004 consists of a fixed lens and image sensor that provides a 102-° horizontal field of view with 720p resolution. Optional surface or embedded mounting accessories. Each one has four packs.
Innovation brings wealth and efficiency
AXIS Companion is optimized for use in combination with the AXIS F34 monitoring system. The solution includes support for anics Zipstream technology and anics video motion detection to achieve maximum retention time. By taking advantage of both technologies, two SD CARDS -- with a total storage capacity of 128 GB -- support one to two weeks of video storage.
AXIS Companion also USES AXIS Secure Remote Access to establish encrypted communications when viewing systems remotely. Connecting a remote camera can be difficult, especially if the camera is behind a router or firewall. Axis Secure Remote Access significantly simplifies installation of Remote Access monitoring systems. <><> remote access function is automatically configured during installation, without manual port forwarding or router configuration.
Equipment included in the complete system
1x AXIS F34 host and power adapter ps-p t-c
4x AXIS F1004 sensor unit and AXIS F7315 cable
4x AXIS F8214 hemispherical attachment
4x AXIS F8224 embedded accessories
64 GB microSDXC card for 2x security monitor
AXIS Companion PC client is available for free download. AXIS Companion's mobile viewing apps (iOS and android versions) are also free to download.
To learn more

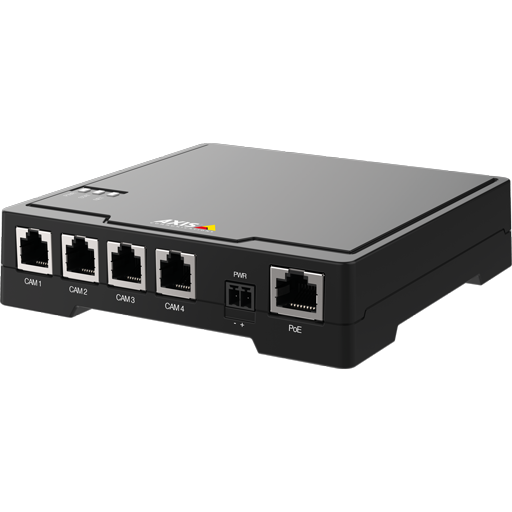

Axis F34 main component
Axis F34 main component
Multi-screen surveillance.
Learn more
AXIS F1004 sensor unit
AXIS F1004 sensor unit
Super small size, super low price, covert surveillance
Learn more
AXIS F7315 white cable (15m)
AXIS F7315 white cable (15m)
AXIS F7315 is sold in sets, each containing four white cables of 15 m (49 ft) length to connect the AXIS F1004 sensor components.
Learn more
AXIS F8214 hemispheric attachment
AXIS F8214 hemispheric attachment
For mounting AXIS F1004 on the ceiling or wall surface. This attachment allows AXIS F1004 to tilt in the desired direction.
Learn more
AXIS F8224 mount mount
AXIS F8224 mount mount
Used to embed AXIS F1004 in the ceiling/wall. This attachment allows AXIS F1004 to tilt in the desired direction.
Learn more
64 GB microSDXC? card for ensign monitoring
Reliable edge storage for video monitoring.
Learn more
The AXIS Companion
The AXIS Companion
