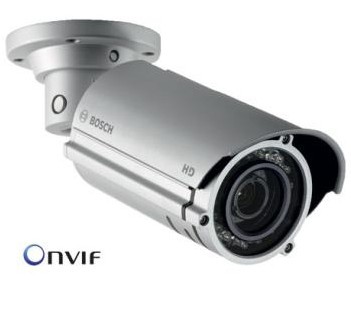

Bosch NTC-265-PI HD Day and Nigh Infrared The Bullet Type Camera
Product Numbers:NTC-265-PI
Price:0
Product introduction:Bosch NTC-265-PI HD Day and Nigh Infrared The Bullet Type Camera
Bosch NTC-265-PI HD Day and Nigh Infrared The Bullet Type Camera
Under the high definition formats, hd 720 p resolution
Day and night amphibious function and portable infrared filter
Built-in infrared lamp, can see 25 meters (82 feet) distance of the object
Intelligent mobile detection
IP66 standard solid design
Accord with standard of ONVIF
The input voltage + 12 VDC power supply or Ethernet
Power consumption 6.72 watts (maximum)
Quarter inch CMOS sensor type
Sensor 1280 x 800 pixels
Sensitivity is 0.3 lx (infrared) closed 0 lx (infrared open)
Video resolution 720 p, 480 p, 240 p
H. 264 video compression MP (Main Profile);H. 264 BP + (Baseline Profile Plus);M - JPEG
The biggest frame rate of 30 FPS
Distance of 25 meters (82 feet)
Efficient leds 32 LED array, the 850 nm
2.7 to 9 mm, manual zoom lens type DC aperture pro series to shut down, day/night switch
Lens plate installation
Analog video output BNC connectors
Short circuit or alarm input DC 5 v activation
Relay output maximum input rating 1 A 24 VDC/VAC
Audio input circuit input jack
Audio output circuit output jack
Two-way audio communication, full duplex
Audio compression g. 711, L16 (live and recording)
Device configuration using a Web browser or PC monitoring software
Protocol IPv4 and IPv6, UDP, TCP, HTTP, HTTPS, RTP, IGMP V2 / V3, ICMP, RTSP, FTP, Telnet, ARP, and DHCP, SNTP, SNMP (V1, MIB ? II), 802.1 x, SMTP, iSCSI, UPnP (SSDP)
10/100 base-t Ethernet, automatic detection, half duplex/full duplex, RJ45
Ethernet power accord with the standard IEEE 802.3 af
Size (high thick) x width x 100 x 100 x 291 mm (3.94 x 3.94 x 11.46 inches)
Weight about 1.6 kg (3.53 lb)
Working temperature cameras - 20 DHS to 50 DHS C + C (4 DHS F to + 122 DHS F)
Storage temperature - 20 DHS C to + 70 DHS C (4 DHS F to + 158 DHS F)
Humidity below 90% relative humidity (no condensation)
