產品編號:AXIS Q1941-E PT Mount
產品價格:¥

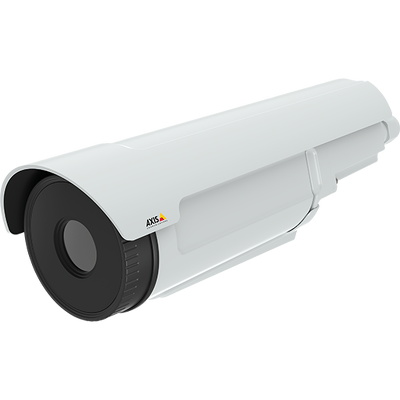

產品簡介:安訊士AXIS Q1941-E PT Mount執成像網絡攝像機 Thermal Network Camera Wide thermal coverage with pan/tilt flexibility
安訊士AXIS Q1941-E PT Mount執成像網絡攝
像機 Thermal Network Camera
Wide thermal coverage with pan/tilt flexibility
- PT mount-ready
- Outstanding image contrast gives reliable detection and fast verification
- Powerful performance for video analytics via ACAP applications
- 384x288 thermal detection
- Electronic image stabilization and audio support
Easy and flexible installation
AXIS Q1941-E PT Mount is easy to install and can easily be integrated with existing security systems. The following installation video shows how to mount the camera on a positioning unit.
A video analytics powerhouse
AXIS Q1941-E PT Mount’s powerful processor lets you add the strength of the market’s widest selection of video analytics solutions to your surveillance solution. For example, video analytics applications from Axis and our partners support swift and appropriate response to detected events by analyzing them, automatically dismissing non-threatening ones and instantly notifying security staff of potentially critical situations. Your staff can then view sharp, detailed footage to determine the precise nature of the threat – and act accordingly. Thanks to a superb thermal image contrast, AXIS Q1941-E reliably detects and gives a fast verification of the situation, e.g. in perimeter surveillance.
Low bandwidth and storage
AXIS Q1941-E PT Mount is equipped with Axis Zipstream technology, which reduces storage and bandwidth requirements, while capturing important details in full image quality. It does this by compressing less significant areas more than areas of interest. In other words, areas devoid of people or movement are compressed more. This can be particularly relevant to applications where thermal IP cameras are likely to be used, since these are often applications in areas where access is highly restricted. Moreover, the Electronic Image Stabilization (EIS) helps the camera to provide a smooth live viewing when it is mounted on instable places and vibration can be perceived as an issue.
Detection ranges
Focal length | Viewing angle | Detection | ||||
---|---|---|---|---|---|---|
mm | Horizontal |
Human: 1.8 x 0.5 m |
Vehicle: 4 x 1.5 m |
|||
m | yards | m | yards | |||
Detection (1.5 pixels on target) | 7 | 55° | 200 | 219 | 613 | 671 |
13 | 28° | 393 | 430 | 1205 | 1318 | |
19 | 19.4° | 567 | 620 | 1739 | 1902 | |
35 | 10.7° | 1028 | 1124 | 3153 | 3448 | |
60 | 6.2° | 1774 | 1940 | 5441 | 5951 | |
Recognition (6 pixels on target) | 7 | 55° | 50 | 55 | 153 | 168 |
13 | 28° | 98 | 107 | 301 | 329 | |
19 | 19.4° | 142 | 155 | 435 | 475 | |
35 | 10.7° | 257 | 281 | 788 | 862 | |
60 | 6.2° | 444 | 485 | 1360 | 1488 | |
Identification (12 pixels on target) | 7 | 55° | 25 | 27 | 77 | 84 |
13 | 28° | 49 | 54 | 151 | 165 | |
19 | 19.4° | 71 | 78 | 217 | 238 | |
35 | 10.7° | 129 | 141 | 394 | 431 | |
60 | 6.2° | 222 | 243 | 680 | 744 |
